OUR EQUIPMENT
Conxraying has invested in the best concrete scanning software available so we can provide accurate reports to our clients.
RIDGID 21893 SeekTech SR-20 Lightweight, Utility Line Receiver/Locater
1” (25 mm) capacity up to 85′ (25 m). Passes 90° bends in most 1 3/16” (30 mm) lines.
We use the RIDGID nano Reel Camera system combined with the RIDGID 21893 SeekTech SR-20 Lightweight, Utility Line Receiver/Locater, for a wide array of specialty applications, by locating the camera head inside the sewer and storm water services pipes we are able to identify the direction of the pipe and the depth underground or under slab to locate damages to pipes, blockages or to identify suitable locations to connect into them.
RIDGID SeekTech KIT Utility Locating Kit with SR-20 Line Locator, ST-305 Transmitter, 4" Inductive Signal Clamp
The RIDGID SeekTech KIT (46918) Utility Locating Kit includes the SeekTech SR-20 Line Locator, SeekTech ST-305 Transmitter, and SeekTech 4″ Inductive Signal Clamp. The kit performs fast and easy locating of underground cables and pipes.
Proceq GP8000
Ground Penetrating Radar (GPR) devices for concrete scanning emit electromagnetic energy into a concrete slab and record the echoes of those pulses to build an image. The resulting image can be used for locating rebars or PTSC (post tension stress cables) before concrete drilling cutting or coring, investigating unknown structures, determining concrete thickness, imaging rebar geometry and several other applications.
The Proceq GP8000 ground penetrating radar is light weight and easy-to-use concrete scanner that connects wirelessly to an iPad. The equipment produces high resolution scans up to a maximum depth of 700 mm by using a stepped frequency antenna which covers a frequency range of 0.2 to 4.0 GHz.

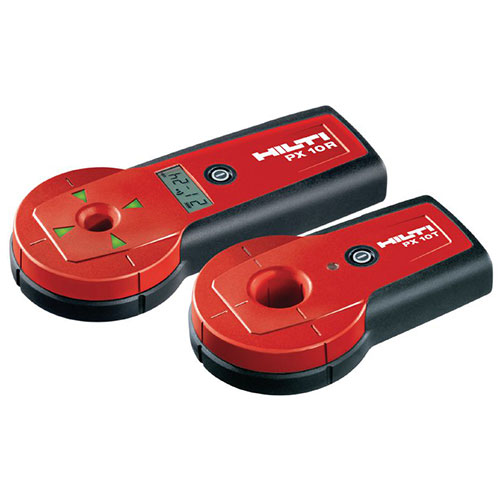

PX 10 Transpointer
The Hilti PX 10 Transpointer is a solution to determine start and exit points for your drilling/coring applications. Consisting of two handheld units, a transmitter and a receiver, the PX 10 is the go-to tool for drill hole accuracy.
The easy-to-read display also shows wall thickness
